Parameter \ Model | Electric tilting & rotation | Electric tilting & manual rotation |

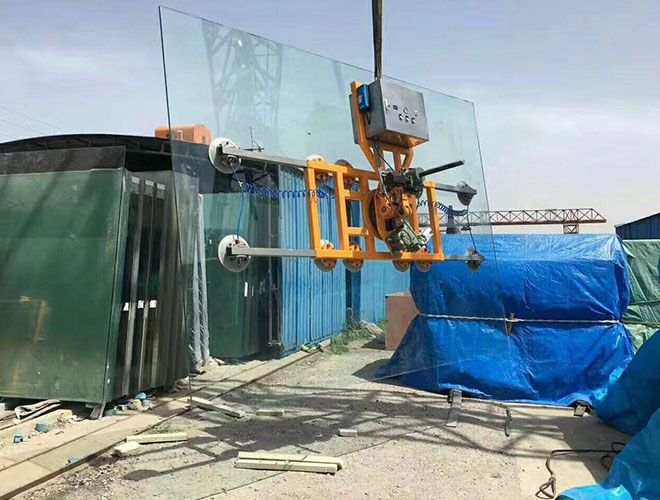

Function | Mainly suitable for outdoor large glass installation, indoor large plate moving etc. It has tilting and rotation functions. | |
Operation voltage | DV48V / AC380V (optional) | |
Battery Life | 15 - 20 hours | |
Operating weight | 1000 - 1500kg | 800 - 1300kg |
Rotation | Electric rotation 360° | Manual rotation 360° |
Turn over | Electric 90° | |
Operation method | Manual / remote control | |
Feature | Vacuum pump | |
Vacuum system | - Voltmeter, protection against power failure up to 15 minutes. - Barometer, low air pressure alarm function. | |
Air supply | Electric vacuum pump compressed air 6-8 Pa | |
Suction cup No. | 10 , 14 (customized) | 8,10,12 (customized) |
Lifting method | Externally hang on the lifting tool / crane | |
|
|
|
