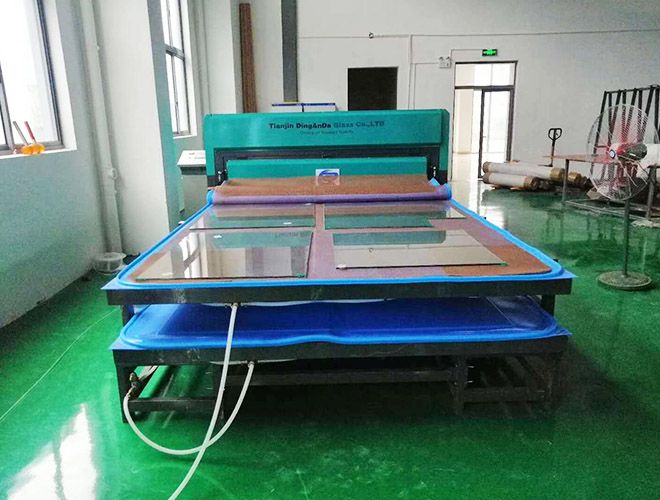

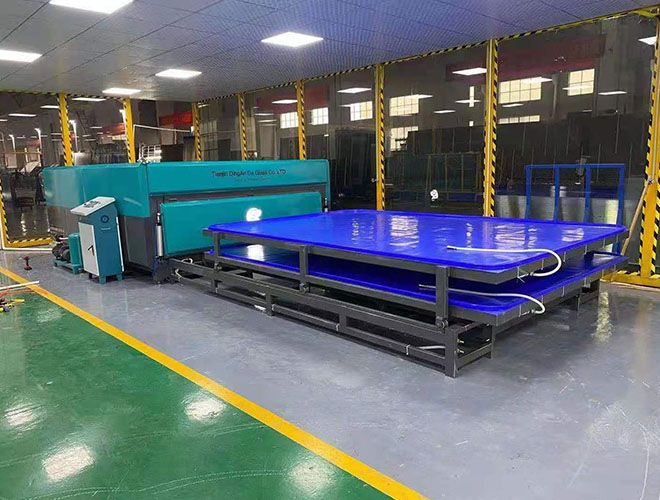

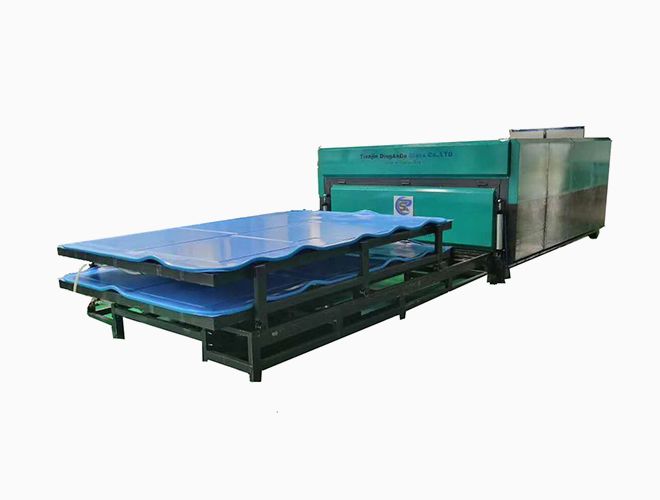

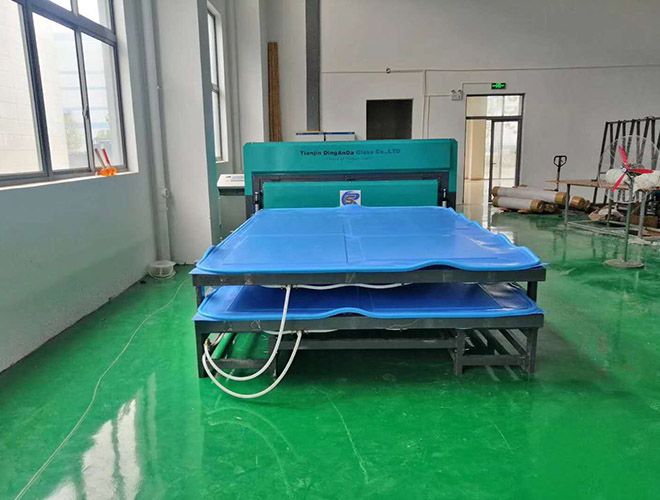

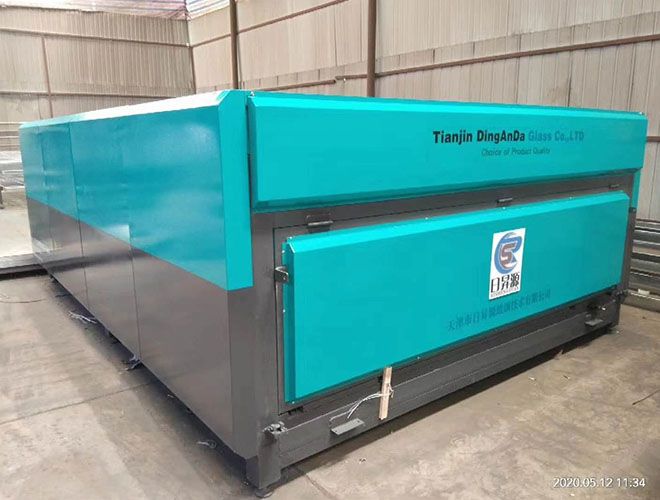

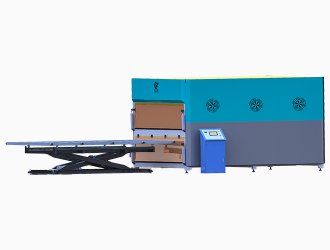

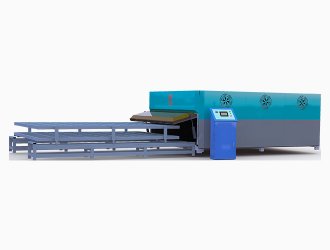

Strong Convective Circulation Wind Laminating Epuipment

Equipment features: Adopt circulation air heating method, with more balanced temperature, thereby improving product quality. PLC frequency conversion control system, accurate temperature control, preset muti-stage temperature control, according to different processes can be arbitrary selection of temperature segment, control segment, prevent glue overflow. With large output, low energy consumption, small footprint, is an ideal choice for processing customers.

Product Details

Equipment can be produced: ordinary float laminated glass, tempered laminated glass, curved laminated glass, colored laminated glass, LED glass, dimming glass, bulletproof glass, muti-layer laminated glass, wired glass, sliding door reinforcement photo glass, crystal steel door glass, home appliance panel glass, glass corner, photo studio crystal photo glass, background wall and video wall glass, coffee table glass, partition screen, frameless painting and other personalized photo glass etc.


Technical Parameters

Name

Single layer single station

Double layer single station

Three-layer single station

Four layer single station

Power supply

3P 380V/50HZ

3P 380V/50HZ

3P 380V/50HZ

3P 380V/50HZ

Total power

21.3KW

46.7KW

49.7KW

55.7KW

Equipment appearance

3000mmx2450mmx1200mm

4200mmx3230mmxx1500mm

4200mmx3450mmx1700mm

4200mmx3080mmx2320mm

Machine whole weight

980KG

2400KG

3050KG

3300KG

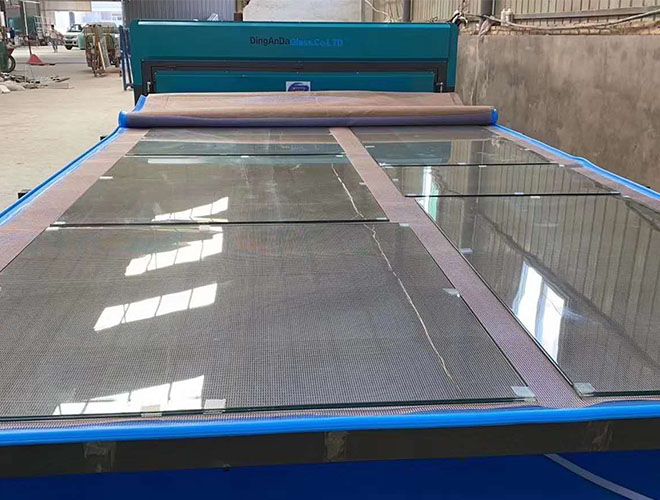

Vacuum bed sets

One set

Two sets

Three sets

Four sets

Maximum glass processing size

1900mmx2500mm

2440mmx3660mm

2400mmx3660mm

2400mmx3660mm

Note: the device can be produced according to customer requirements.
